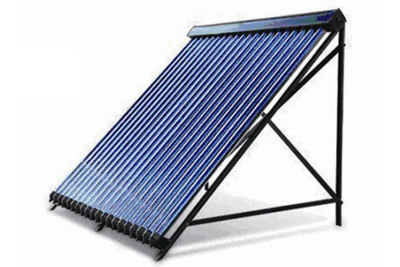

| 1. Can be matched with any low pressure, high pressure hot water system.
2. Use heat pipe for the heat conduction and can get a high heat absorption efficiency and rapid heat transfer.
3. Easy plug-in design and installation.
4. Corrosion-resist aluminum manifold and frame.
5. optional 38¡ã/ 45¡ãframe can resists wind with a velocity of 36m/s.
6. Can supply hot water to large amount water need.
7. economical for hotel, school, dormitory, hospital and tall high-buildings.
Specification:
Inner manifold material |
Red copper channel |
Out shell material of manifold |
Aluminum alloy |
Frame material |
Aluminum alloy |
Heat pipe material |
99.93% pure copper & lead free,45% silver brazing |
Rubber seals and rubber rings |
HTV grade silicone rubber |
Optional installation angle |
0¡ã,30¡ã,38¡ã,45¡ã |
Maximum operation pressure |
12 bar |
Optional flow rate |
0.11/min/tube 0.026 G/min/tube |
Vacuum tube |
¦µ47-1500, ¦µ58-1800mm with heat pipe |
Daily efficiency |
=55%(=42% in winter) |
Hailstone resistance |
Dia.=25mm |
Heat pipe anti-freezing |
=-35¡æ |
Life-span |
Approximate to 15 years |
|
